4/2 and 4/3 Directional Control Valve, Solenoid Operated; 350 bar (5076 psi)

Description

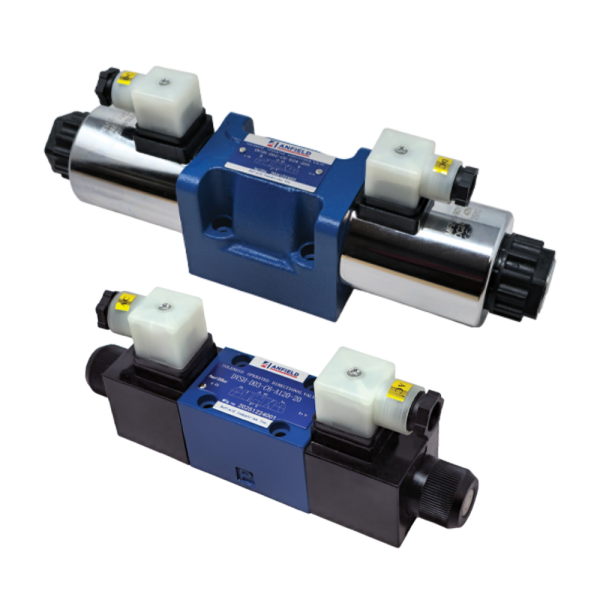

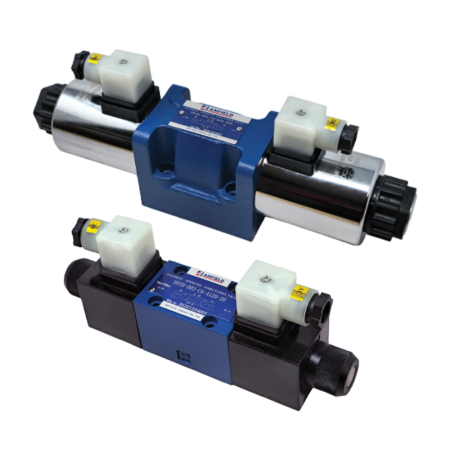

Anfield DVSH series solenoid actuated directional control valves are used to manage the direction of flow in hydraulic circuits. NFPA D03, D05 industry-standard subplate mountable. The DVSH valves are rated for 5076 psi (350bar), and used for low-to-medium flow applications up to approximately 15-20 gpm, while D05 valves are larger, supporting higher flow rates typically up to 39 gpm, in both cases depending on the spool type. Moving core immersed in hydraulic oil provides quiet operation.

Features

•     Direct acting, directional control valve with subplate mounting interface acc. to NFPA D03 / NG6 / CETOP 03 and NFPA D05 / NG10 / CETOP 05
•     DVSH-D03 & D05 are five chamber design
•     Used for pressures of up to 5076 psi (350bar) and flows up to 39.6 gpm (150 l/min). (depending on the spool type)
•     High back pressure up to 3050 psi (210 bar)
•     Available in single or double solenoid
•     Solenoids offered with DIN 43650 or Deutsch DT04-2P Connectors
•     Manual override standard
•     Available with a wide range of spools
•     DC or AC solenoids
•     UNC mounting bolt kits are standard
•     Quick Turnaround – Common configurations and core products delivered from stock and conversions of non-core products delivered in days

Application

• Mobile & Transport Equipment
• Industrial / Manufacturing
• Agriculture
