VPA10V(S)O -52 & -53 Series

Variable Displacement Axial Piston Pumps

Description

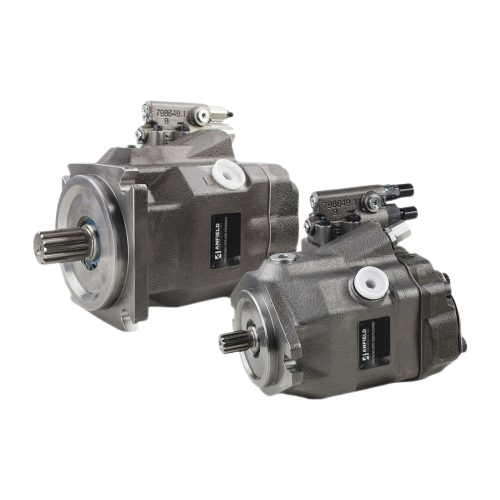

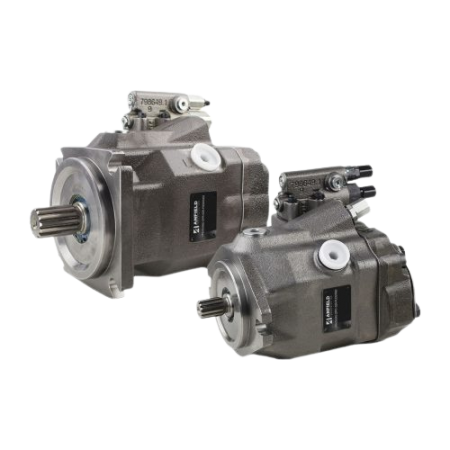

Anfield VPA10V(S)O -52 and -53 Series variable displacement axial piston pumps are designed for open loop circuits and can be used in both mobile and industrial applications. The output flow is proportional to the drive speed and the displacement.

The VPA10V(S)O -52 and -53 series piston pumps are available in multiple displacements, ranging from 0.61 in³/rev (10 cm³/rev) to 6.10 in³/rev (100 cm³/rev). They offer speeds up to 3600 rpm and nominal pressure of 3600 psi (250 bar). Offered in single or through drive allowing for multi-circuit systems. SAE/ISO mounting with side or rear porting.

These pumps are available in a variety of controls with short control response times, offering the benefit of providing power only when needed depending on your application.

Features

• Variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuit for machines with medium pressure requirements
• Series 52: Sizes 10, 28, 45, 60, 85
• Series 53: Sizes 18, 28, 45, 63, 72, 85, 100
• Nominal pressure 3600 psi (250 bar), Maximum pressure 4550 psi (315 bar)
• High permissible drive speed
• Output flow is proportional to the drive speed and displacement and can be infinitely varied by adjusting the swashplate angle.
• Versatile controller range with short control response times – controller options include: DR, DRG, DFR, DFR1 & DFLR and many more.
• Excellent suction
• Stable bearing for long service life
• Favorable power-to-weight ratio & compact dimensions
• Low operating noise level
• Electro-hydraulic pressure control
• Electro-proportional swivel angle control
• Power control
• SAE and metric flange options
• Multiple drive shaft options
• Single and Through-drive models available
• Direct replacements for Rexroth® A10VO series
• Replacement parts available for service of existing pumps – Contact Anfield sales.
