Filters / In-Line Return Filters / Filters / LMD 951

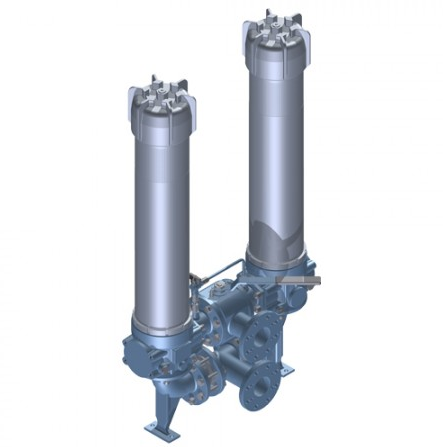

LMD 951

LMD 951

• In-line duplex filters

• Working pressure 16/25 bar (232/362 psi)

• Flow rates up to 1200 l/min (315 gpm)

• Flanged connections 2 1/2", 3" and 4" SAE 3000 PSI DIN PN 16



          Filter housing (Materials)

• Head: Anodised Aluminium

• Housing: Anodised Aluminium

• Manifolds: Welded - Painted black

• Bypass valve: Steel

• 3-way ball valve: Steel body - Stainless Steel ball

• Check valve: Cast Iron body - AISI 304 leaf
