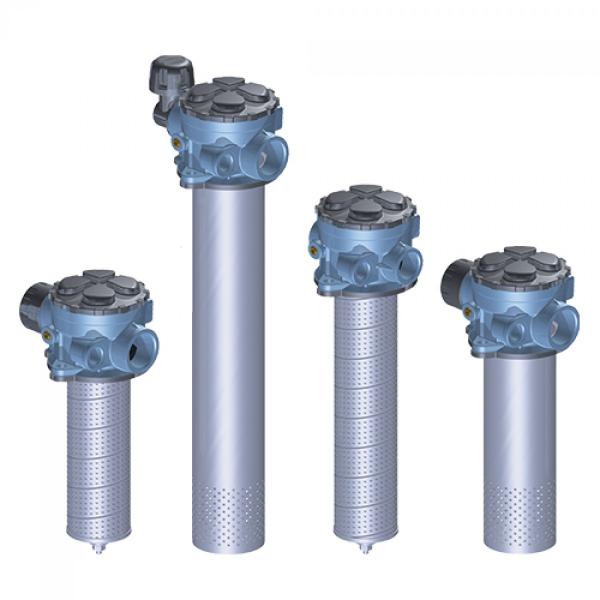

MPH

• Tank mounted return filter with oil flow internal to external filtering element

• Working pressure 10 bar (145 psi)

• Flow rates up to 3000 l/min (792 gpm)

• Threaded connections from 3/4" to 1 1/2" BSP/NPT/SAE

• Flanged connections up to 4" SAE 3000 PSI and DN 100 PN 10/16 UNI 2223

          Filter housing (Materials)

• Head: Aluminium: MPH 104-110-114-120-250 Anodised Aluminium: MPH 630-850 Painted Aluminium: MPH 660

• Cover: Nylon: MPH 104-110-114-120 Aluminium: MPH 250 Anodised Aluminium: MPH 630 Painted Aluminium: MPH 660 Steel: MPH 850

• Insert assembly: Nylon (only for: MPH 104-110-114-120) Aluminium (all the other)

• Diffuser: Zinc Plated Steel (excluded MPH 850) Tinned Steel: MPH 850

• Valve: Phosphated Steel
